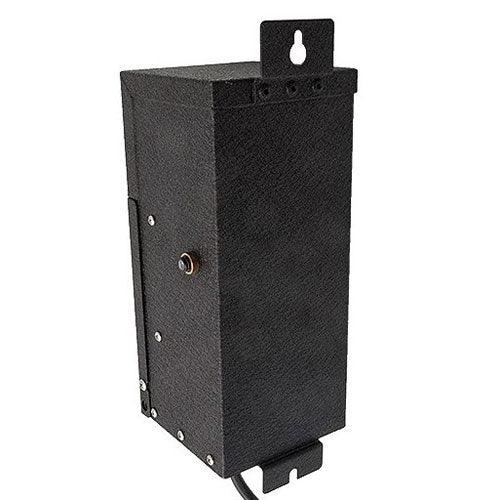

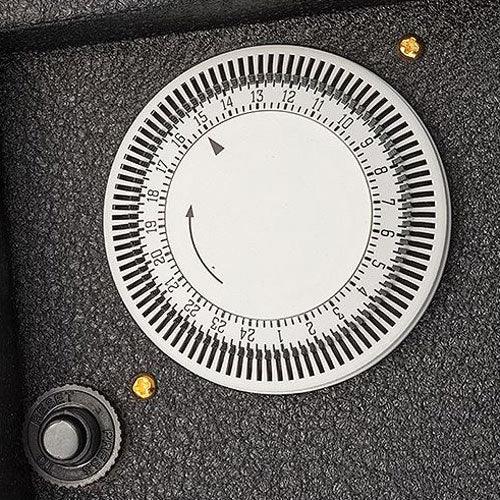

100watt 12/15volt LED AC landscape outdoor transformer with mechanical timer & photocell
100watt 12 or 15-volt LED magnetic AC dual-tap outdoor landscape transformer driver with mechanical timer & photo eye, manual reset primary & secondary breaker for outdoor low voltage lighting applications. Black powder coat steel enclosure. 120VAC input, 12VAC or 15VAC allows for short or long runs.
This table helps you determine the maximum number of lights that can be supported based on the wire run length for different types of landscape lighting: pathlights, spotlights, and in-set lights. As the wire run length increases, the maximum number of lights that can be powered decreases. Use this table to ensure your lighting setup stays within safe limits for optimal performance.
Wire Run Length
Maximum Number of Pathlights
Maximum Number of Spotlights
Maximum Number of In-Set Lights
Maximum Total Watts
15m (50')
53
16
80
80
30m (100')
49
15
74
74
46m (150')
33
10
49
49
61m (200')
25
7
37
37
76m (250')
10
6
30
30
Perfect for all of our landscape lighting fixtures and large enough for a good-sized yard. Run multiple runs from this unit thanks to the oversize terminal block.
Dual-tap connections (12VAC or 15VAC) to allow for short or long runs.
Epoxy-encapsulated transformer for quiet and cool operation.
Thermal circuit breaker on secondary to protect lighting system.
Isolation-type transformers for safe operation.

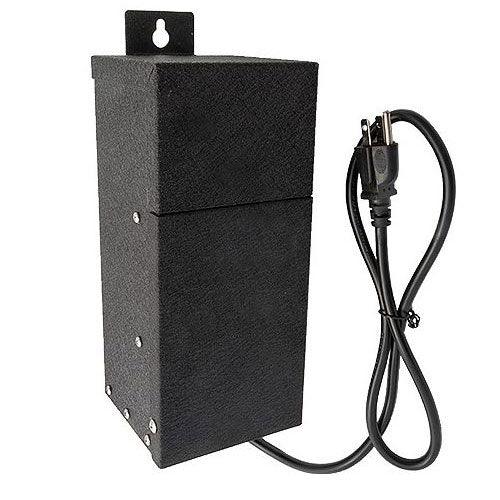

3-foot line cord with a grounding plug.
Enclosure Material: Powder Coated Steel

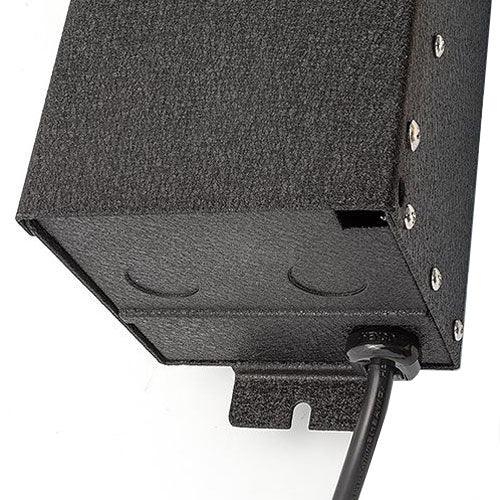

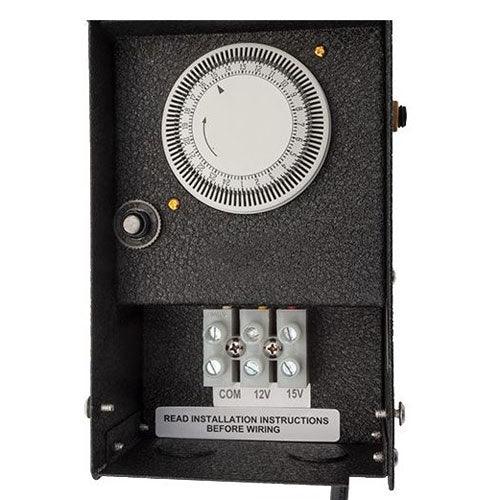

Easy opening enclosure with knock-outs for hardwiring and built-in photo control & Timer.
Din rail mounted terminal board makes wiring capabilities simple and fast.
All units are ETL and CETL listed to U.S. and Canadian safety standards. "Suitable for wet locations
